Pluggable Power.
Dual OS Integration.

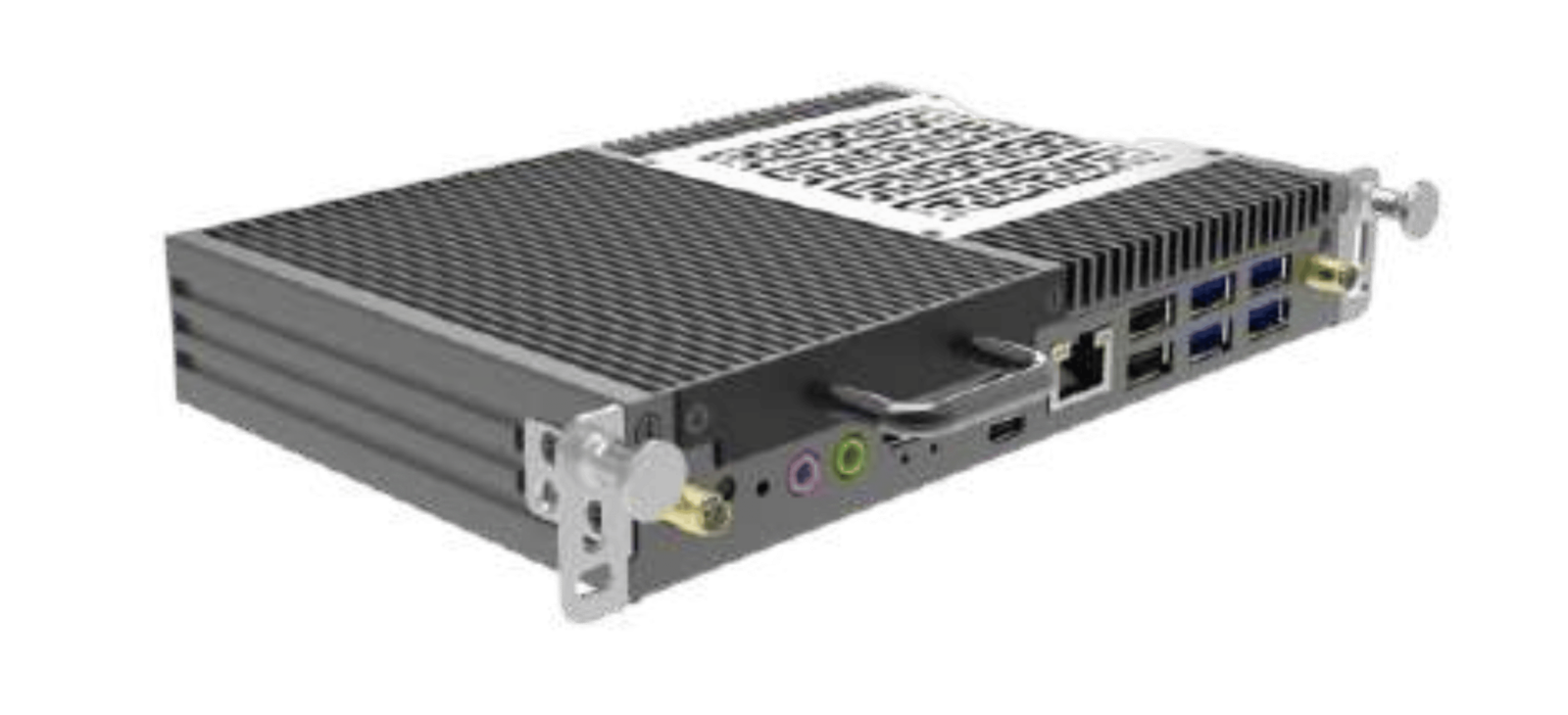

Slot-in Intel Core i5 & i7 computing modules. Instantly transform your WX, W-Pro, and I-Series Interactive Flat Panels into full Windows 11 workstations.
Dual OS Integration.
One Display. Zero Friction.
Why settle for one operating system when you can have both? Slot in the OPS module into any I-Active panel to run full Windows 11 Pro desktop applications alongside native Android 14 touch apps.
Windows 11 Enterprise Environment
Run heavy desktop software, legacy Windows enterprise programs, and multi-window workflows with zero performance limits.
1-Tap Front Key Switch
Press the physical OPS button on the front bezel of your I-Active display to toggle instantly between OS environments.
Shared Hardware Peripherals
Camera, microphone array, 40-point touch digitizer, and 2x20W speakers pass automatically to both Android & Windows.
Clean Wire-Free Setup
Power and video are supplied through the internal JAE 80-pin connector. No external wall power adapters or dangling HDMI wires.
Choose Your Intel Engine.
Available in two distinct hardware configurations optimized for smart school classrooms and enterprise boardrooms.
Intel Core i5 Module
Engineered for standard collaborative classrooms and smart school setups. Delivers rock-solid performance for running interactive whiteboard engines, video calls, and educational web portals.
Intel Core i7 Module
Engineered for heavy-duty corporate boardroom meetings, complex wireless multi-screen casting, 3D CAD modeling, and multi-app multitasking with zero latency.
Built to standard. Built to last.
Every OPS module is precision crafted following Intel's Open Pluggable Specification for flawless interoperability.
Standard JAE 80-Pin Architecture
Compliant with Intel's Open Pluggable Specification (OPS). Integrates standard 80-pin JAE gold fingers that supply power, video signal, touchscreen signals, audio, and serial data over a single internal port.
Enterprise Grade Security
Equipped with hardware TPM 2.0 module, Secure Boot capability, and corporate Active Directory / MDM policy management. Safe for banking and government networks.
Dual-Fan Active Cooling
High-velocity whisper-quiet dual fan layout maintains optimal operating temperatures during intensive 4K interactive whiteboarding sessions.
Comprehensive Port Connectivity
Includes front USB 3.0 & USB 2.0 ports, HDMI 2.0 Output for auxiliary second monitors, Gigabit Ethernet RJ45 port, 3.5mm Headphone/Mic jacks, and Wi-Fi 6 antenna connectors.
Every Port Positioned for Speed.

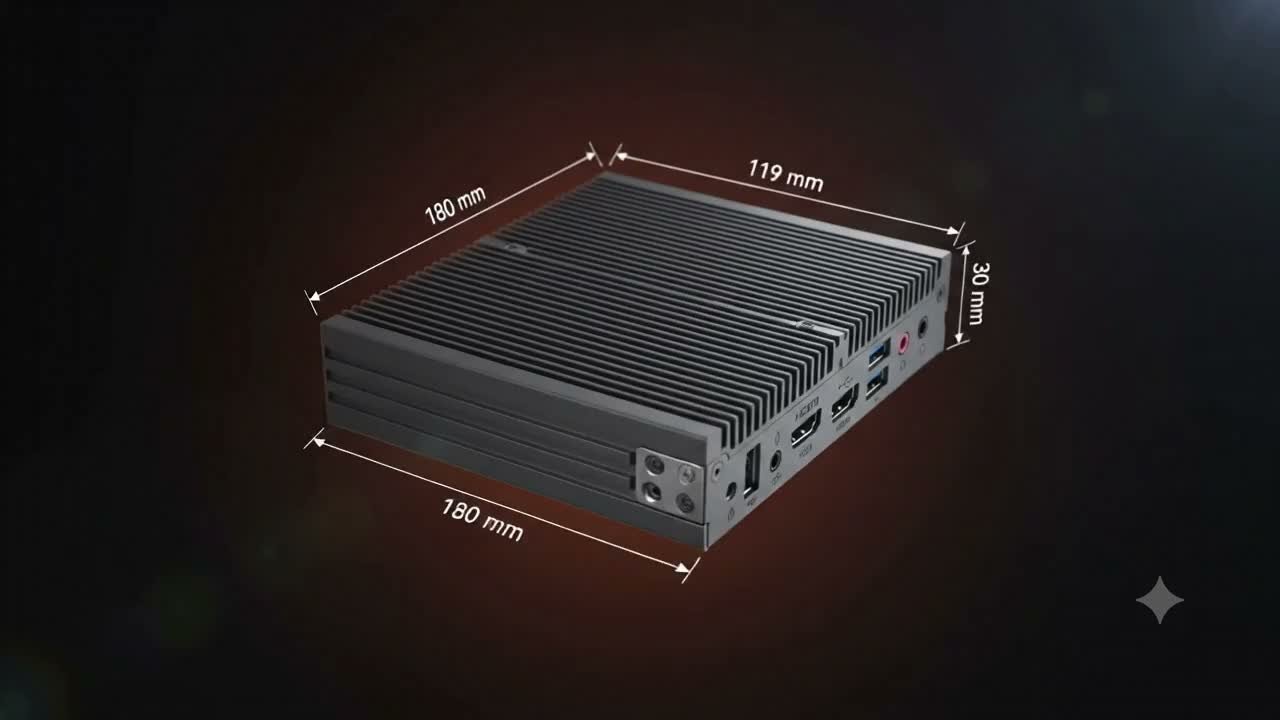

See the exact layout of the front ports and rear JAE 80-pin connector.
Compare i5 & i7 Specifications.
Detailed technical matrix for IT managers and procurement teams.
| PARAMETER | Intel Core i5 Module | Intel Core i7 Module |
|---|---|---|
| Target Application | Smart Schools & Standard Classrooms | Enterprise Boardrooms & Heavy Multitasking |
| Processor Engine | Intel Core i5 (Intel Smart Cache) | Intel Core i7 (High Performance) |
| System Memory (RAM) | 8GB DDR4 High-Speed RAM | 16GB DDR4 High-Speed RAM |
| Storage Capacity | 256GB Solid State Drive (SSD) | 512GB PCIe NVMe Express SSD |
| Graphics Processor | Intel Integrated HD Graphics | Intel UHD Graphics (4K 60Hz Engine) |
| OPS Interface Standard | Standard JAE 80-pin OPS slot | Standard JAE 80-pin OPS slot |
| Operating System Support | Windows 10/11 Pro & Dual OS Android 14 | Windows 10/11 Pro & Dual OS Android 14 |
| Networking | Gigabit LAN + Wi-Fi & BT 5.0 | Gigabit LAN + Wi-Fi 6 & BT 5.2 |
| Thermal Cooling | Dual Active Cooling Fans | Dual Active Cooling Fans |
| Hardware Security | TPM 2.0 Module | TPM 2.0 Module + Secure Boot |
| Certifications | CE, FCC, RoHS, BIS compliant | CE, FCC, RoHS, BIS compliant |
Ready to integrate Dual OS power?
Get an instant official quotation, technical datasheet, or schedule a live demonstration for your educational institute or enterprise organization.
